On the Oslo harbourfront, an office fit-out that uses a single material – dark timber slats – to maximum effect, dividing, decorating and programming the space.InsideNorwayWork
Qualify
Conceive
Refine
Realise
Revisit
Arkwright is an international management consultancy based in Norway. With nordic roots, and a strong commitment to collaboration and long-term client relationships their world view closely mirrors our own.
![](https://hapticarchitects.com/wp-content/uploads/2022/01/Hapticarch_Arkwright_Site-meeting-room-window-930x1240.jpg)
Following a personal recommendation, we were asked to design their Oslo base within an old shipbuilding workshop on the harbourfront at Aker Brygge.
![](https://hapticarchitects.com/wp-content/uploads/2022/01/Hapticarch_Arkwright_Site-meeting-room-930x1240.jpg)

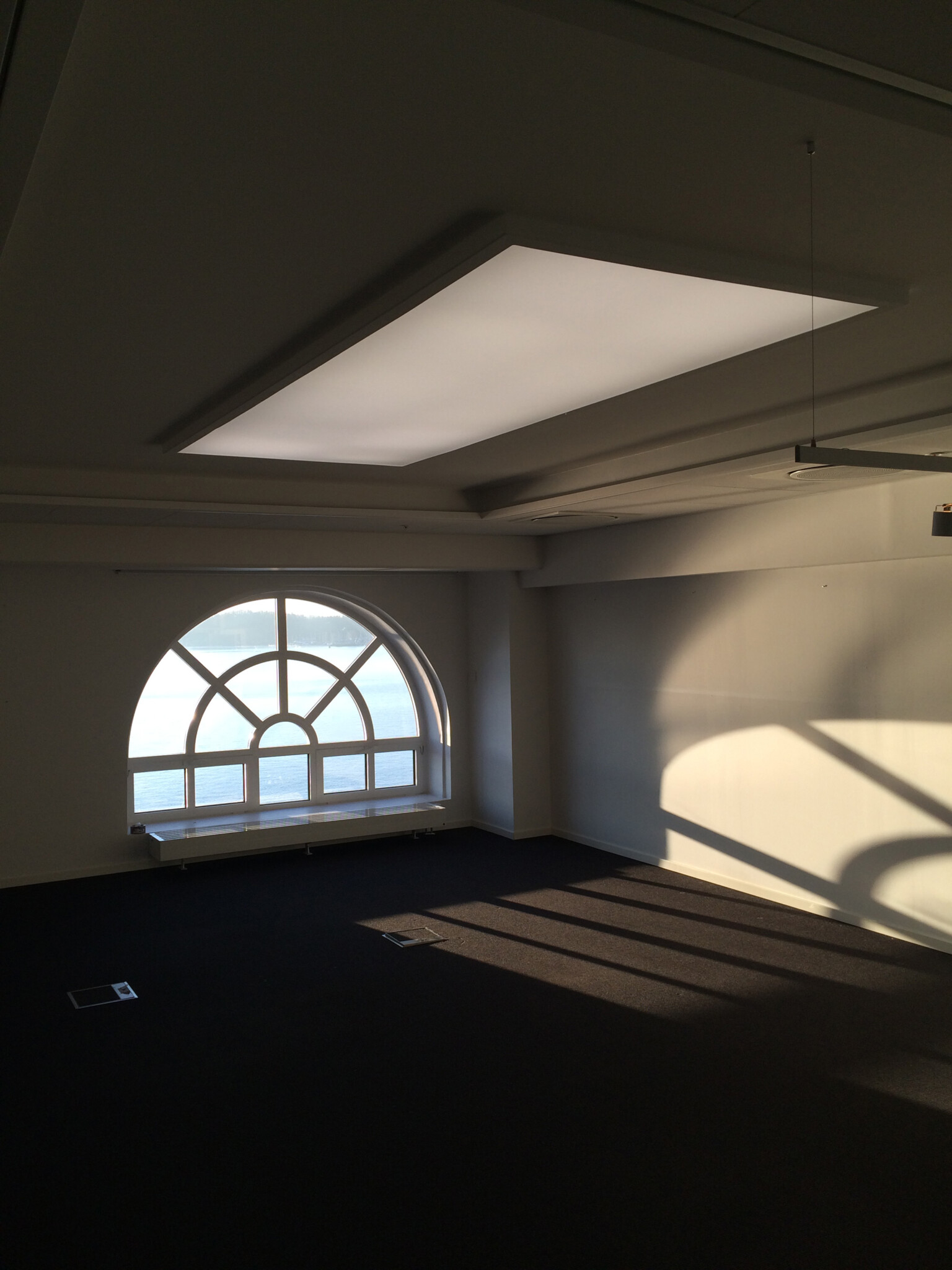

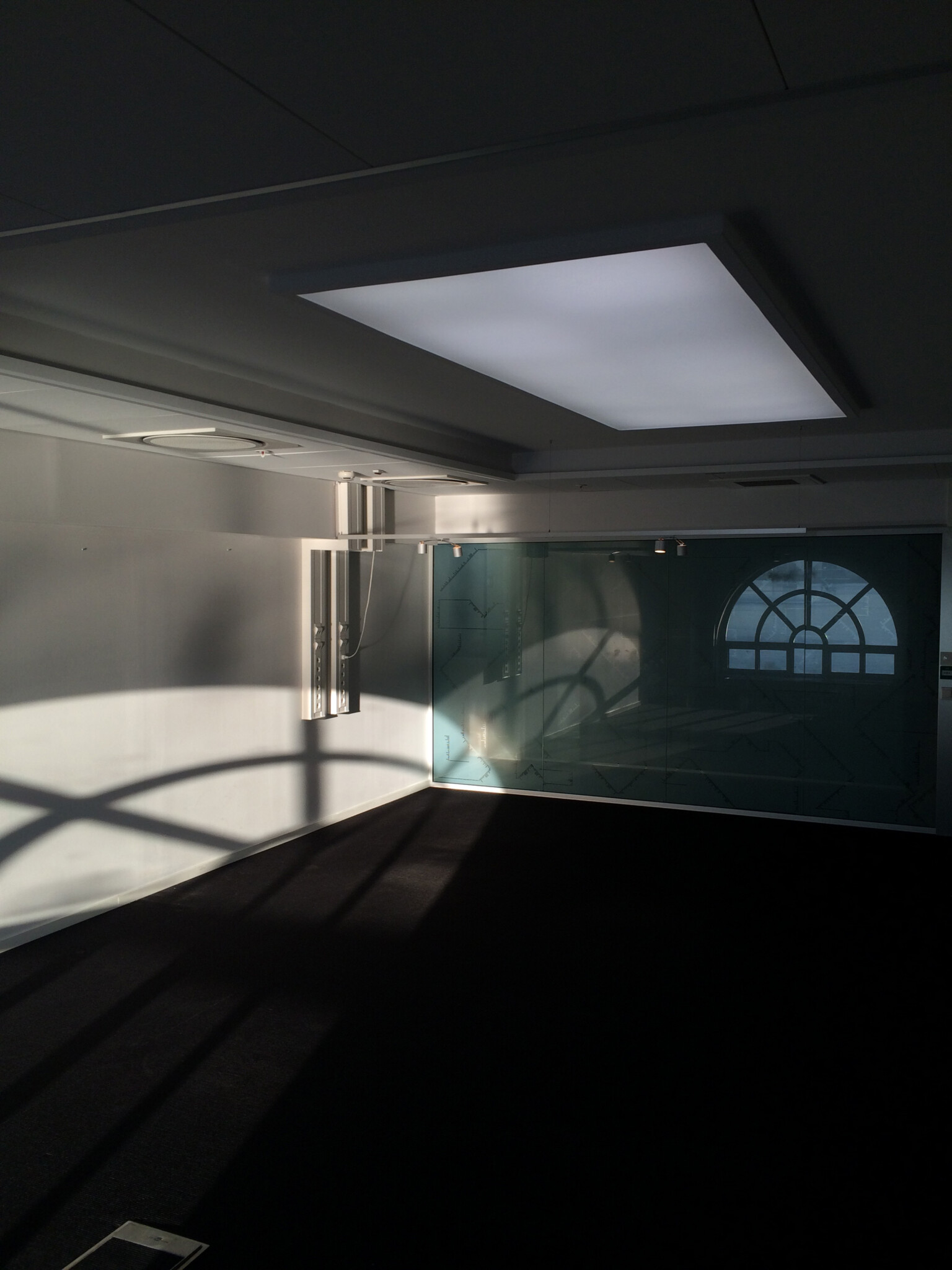

The brick building, with distinctive arched windows, was first refurbished as a workspace in the 1980s.
![](https://hapticarchitects.com/wp-content/uploads/2022/01/Hapticarch_Arkwright_Site-meeting-room-window-2-930x1240.jpg)

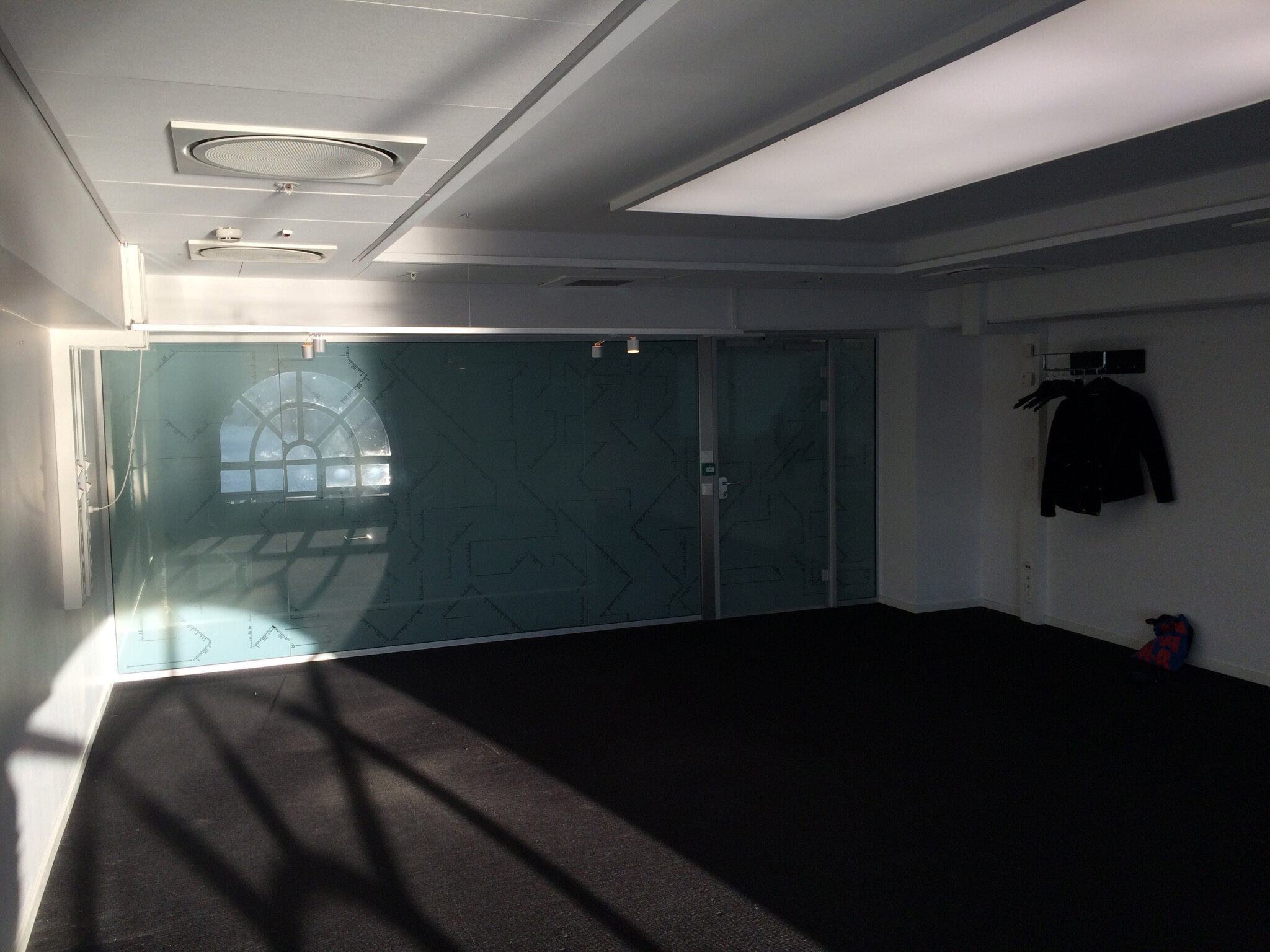

Our task was to create a characterful place within the very generic existing fit-out, combining formal workspaces for 45 team members with more informal areas to meet and socialise.
![](https://hapticarchitects.com/wp-content/uploads/2022/01/Hapticarch_Arkwright_Site-meeting-room-2-930x698.jpg)
Our key idea was to add a single, sculptural intervention into the double-height space that acts simultaneously as a reception desk, space divider, stair and amphitheatre.
![](https://hapticarchitects.com/wp-content/uploads/2022/01/Hapticarch_Arkwright_Hand-sketch-930x1240.jpg)

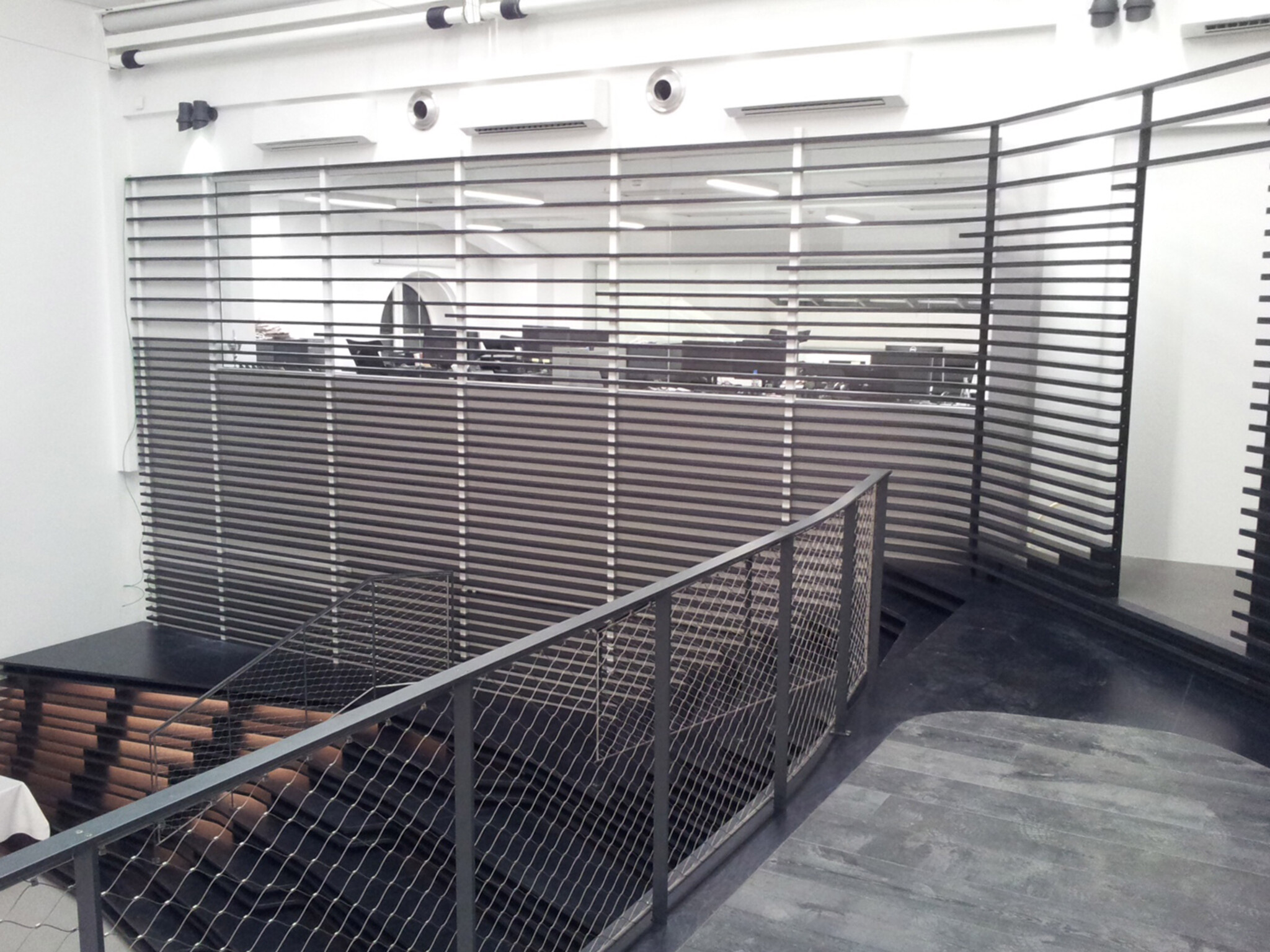

Staff and visitors enter on the top floor, descending into the social space and then the main office, via this multipurpose structure.
![](https://hapticarchitects.com/wp-content/uploads/2022/01/Hapticarch_Arkwright_Meeting-room-digital-model-option-3-930x523.jpg)

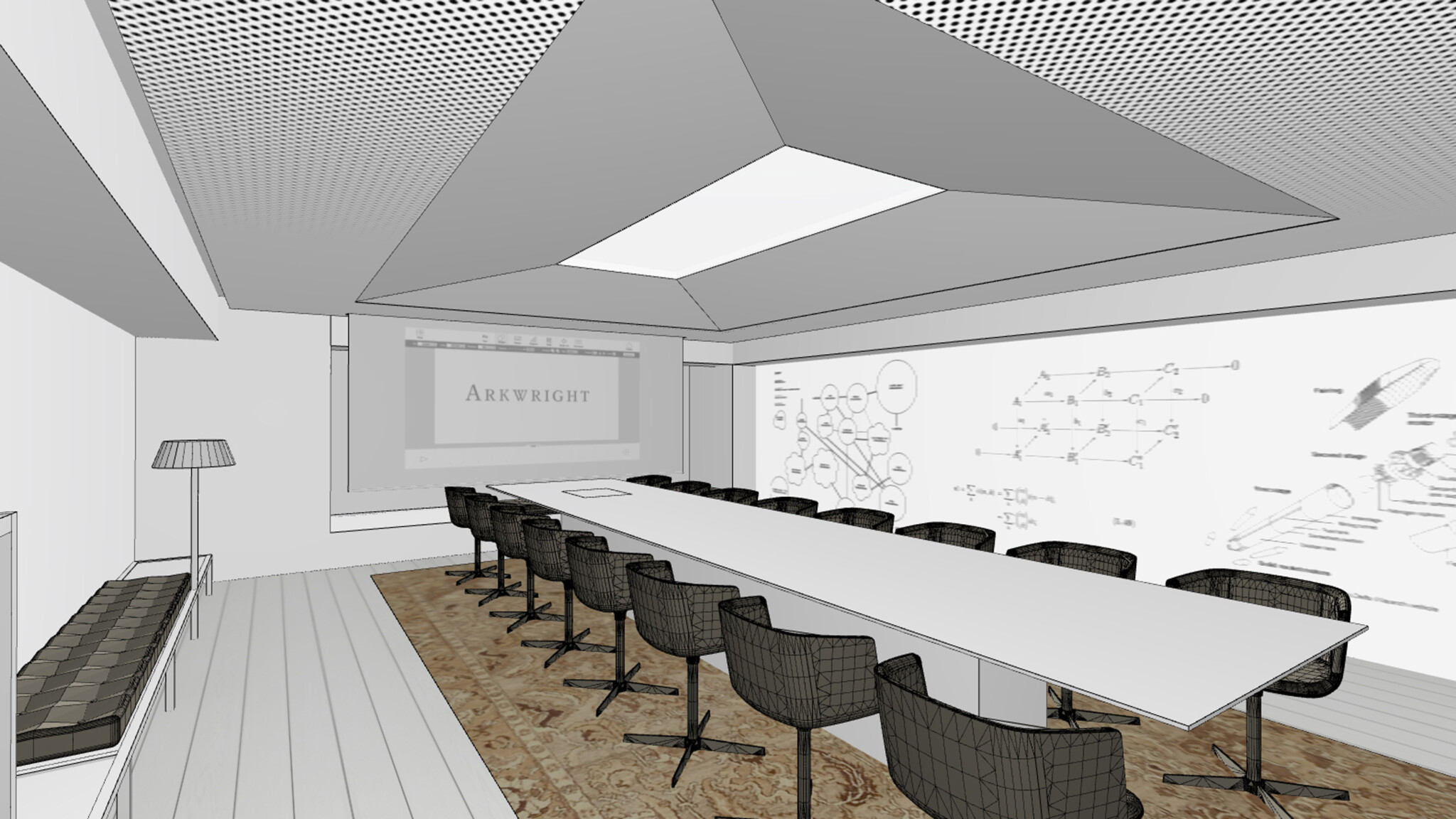

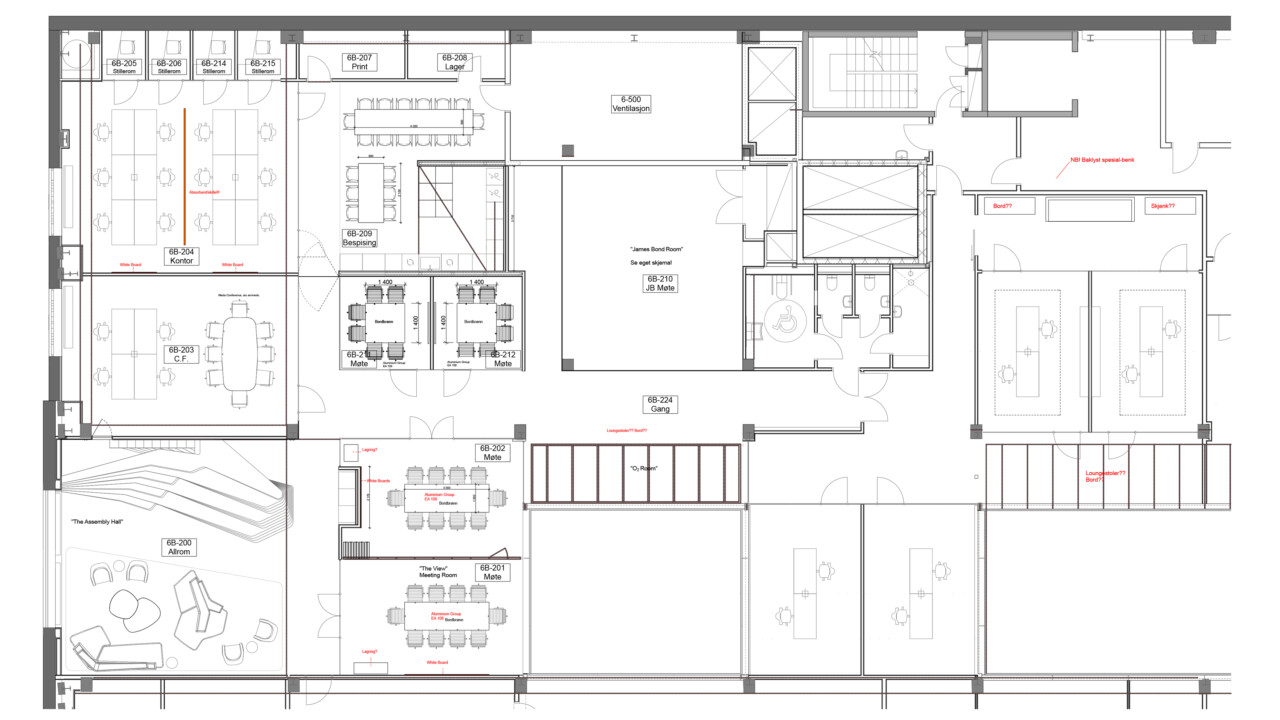

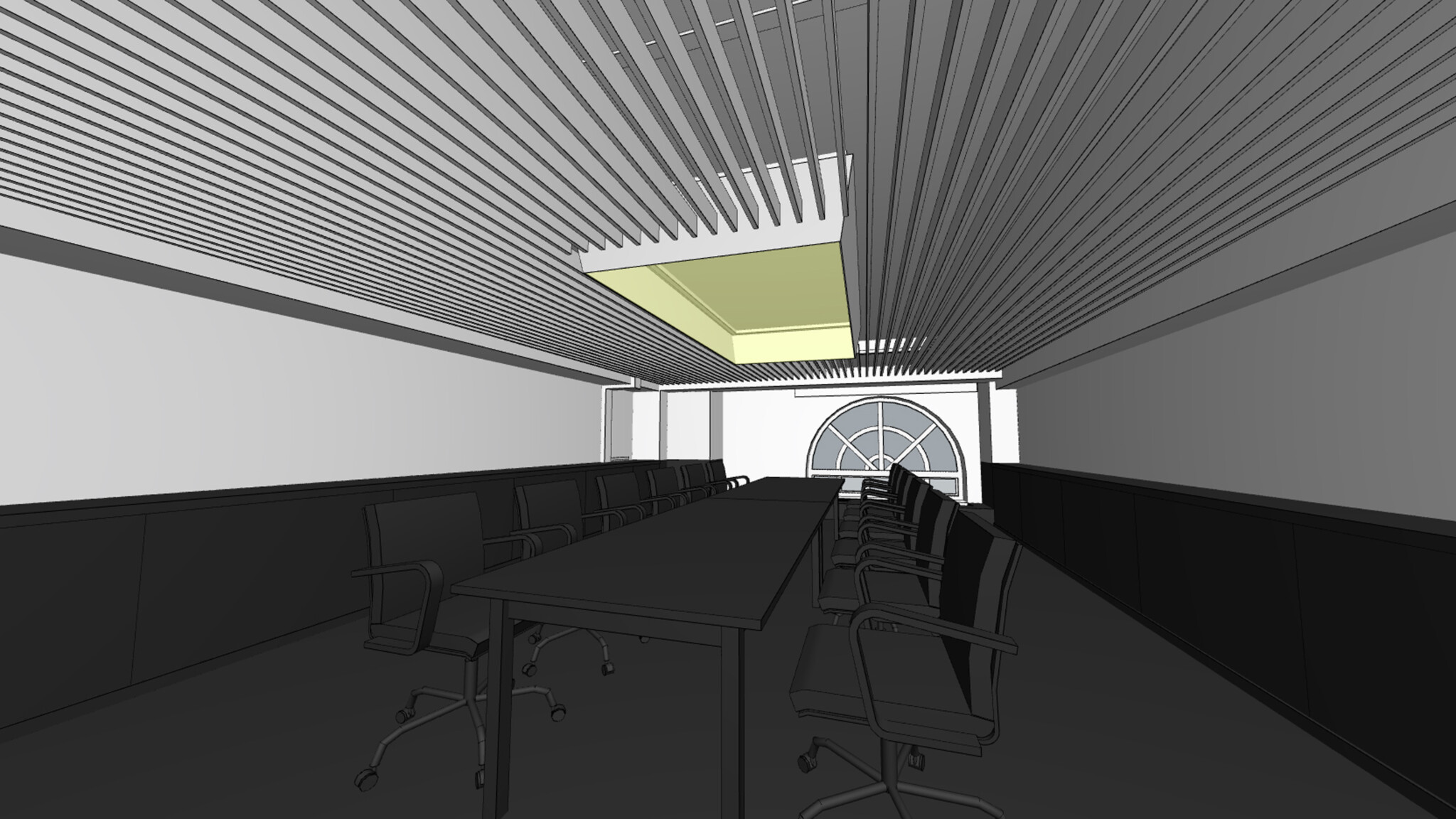

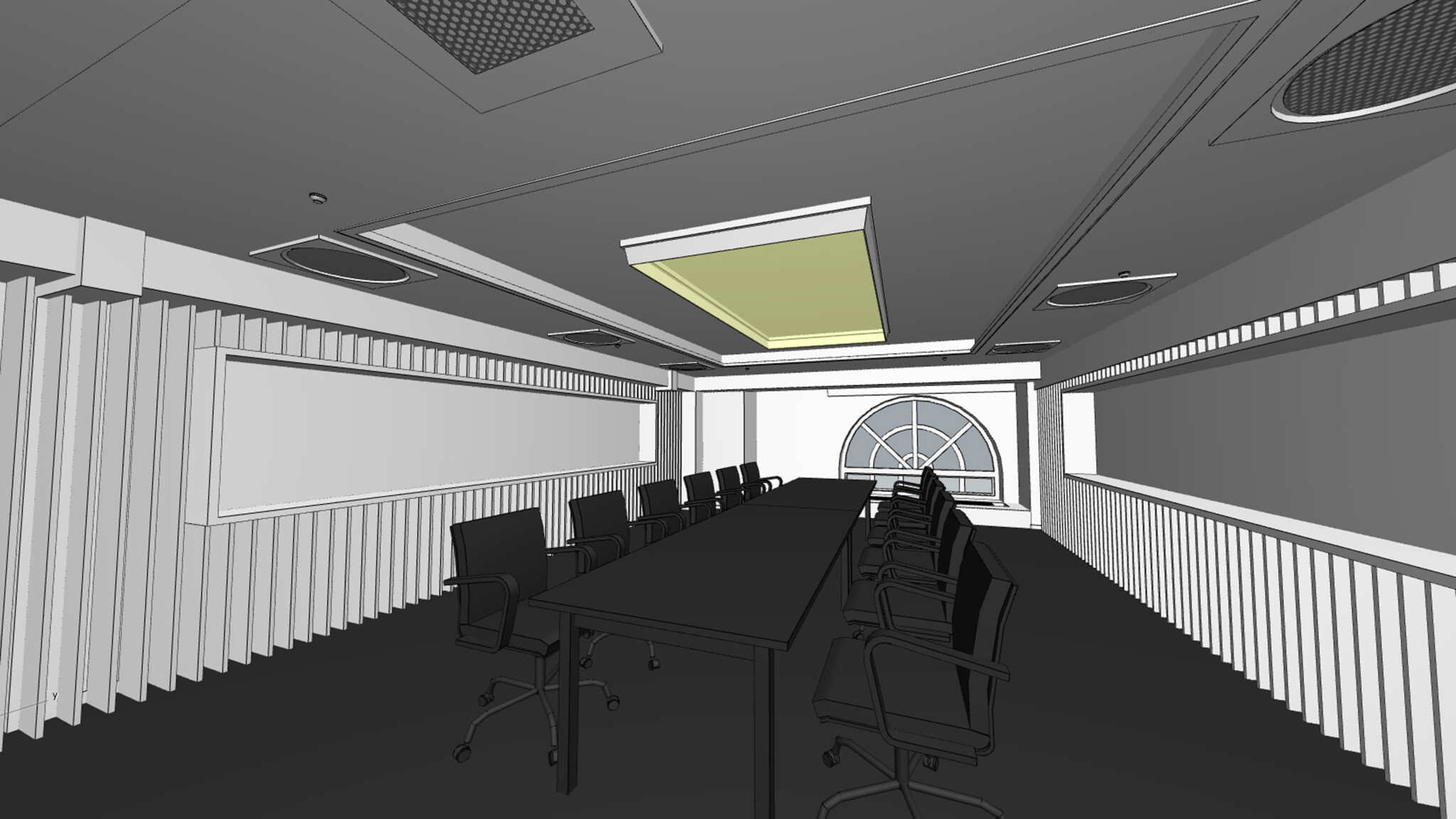

In the deeper part of the plan, where the space is more difficult to work with and there are fewer windows, we designed a ‘James Bond’ room, an executive lounge with a calm and intimate atmosphere.
![](https://hapticarchitects.com/wp-content/uploads/2022/01/Hapticarch_Arkwright_Meeting-room-digital-model-option-2-930x523.jpg)
![](https://hapticarchitects.com/wp-content/uploads/2022/01/Hapticarch_Arkwright_Meeting-room-digital-model-option-1-930x523.jpg)

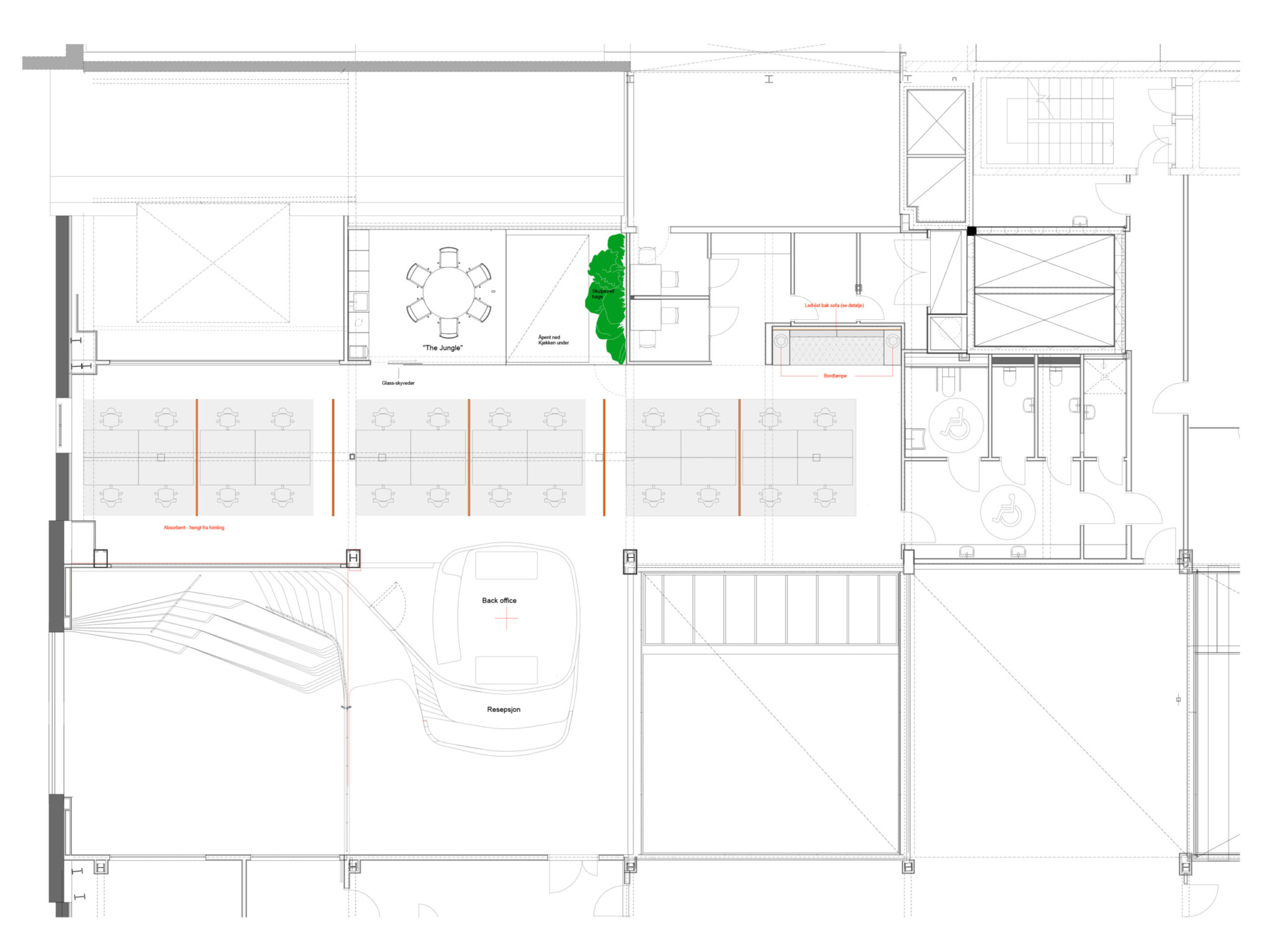

![](https://hapticarchitects.com/wp-content/uploads/2022/01/Hapticarch_Arkwright_plan-2-scaled-930x697.jpg)
![](https://hapticarchitects.com/wp-content/uploads/2022/01/Hapticarch_Arkwright_plan-scaled-930x523.jpg)

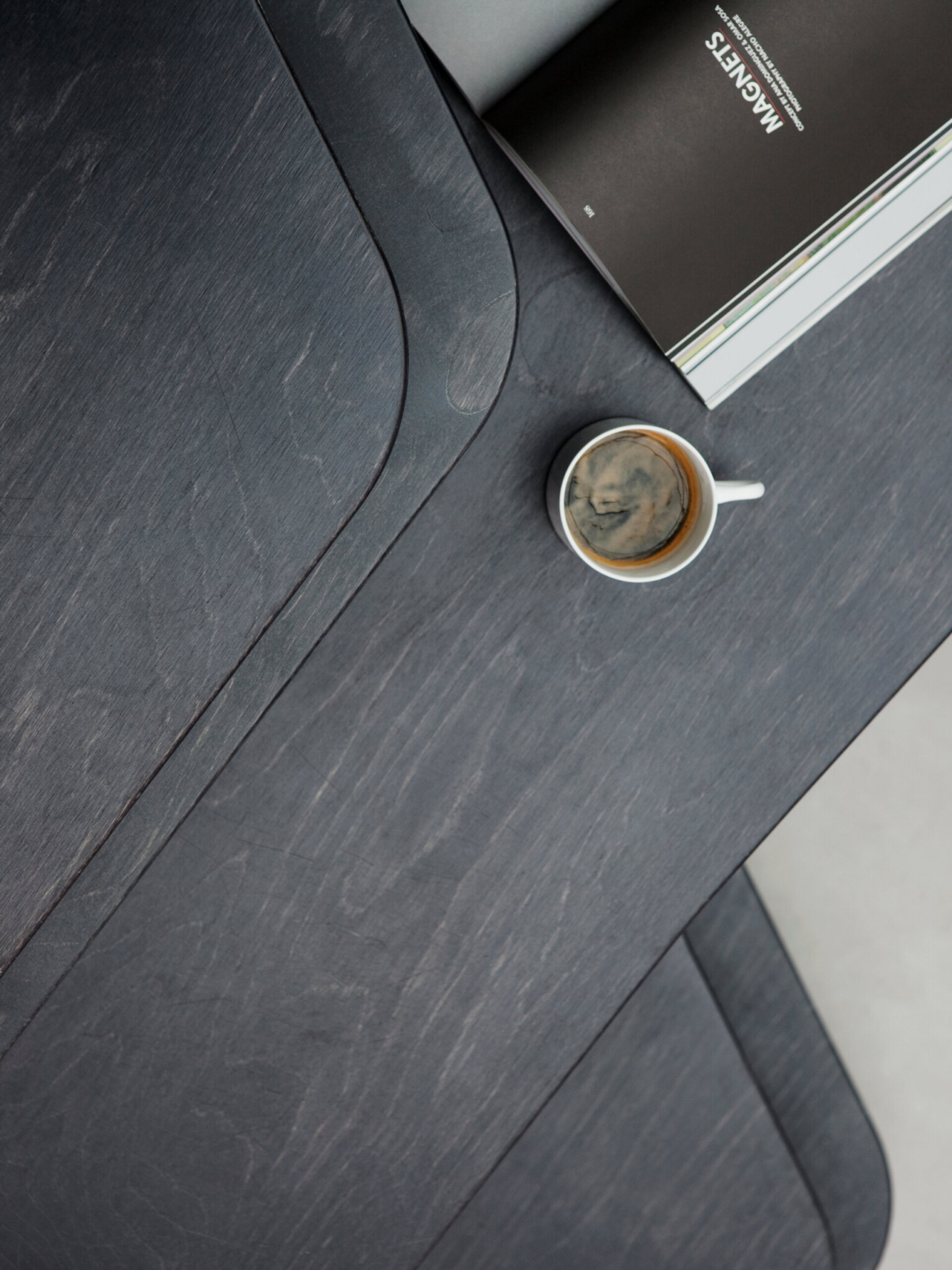

The central intervention is inspired by the svabergs typical of the area – granite rock formations polished smooth by glacial ice – and is entirely built from stained plywood slats.
![](https://hapticarchitects.com/wp-content/uploads/2022/01/Hapticarch_Arkwright_Meeting-room-plan-drawings.jpg)

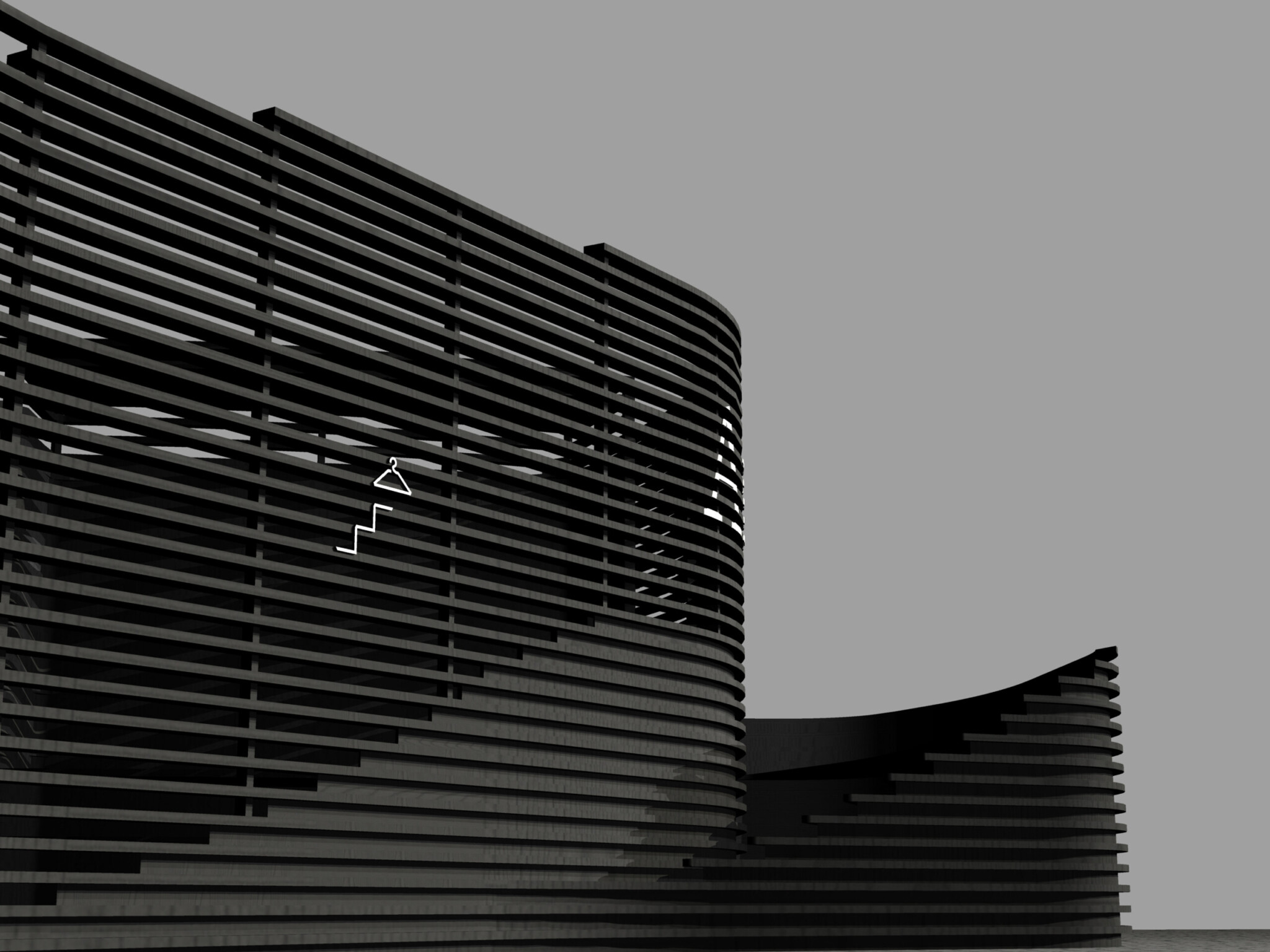

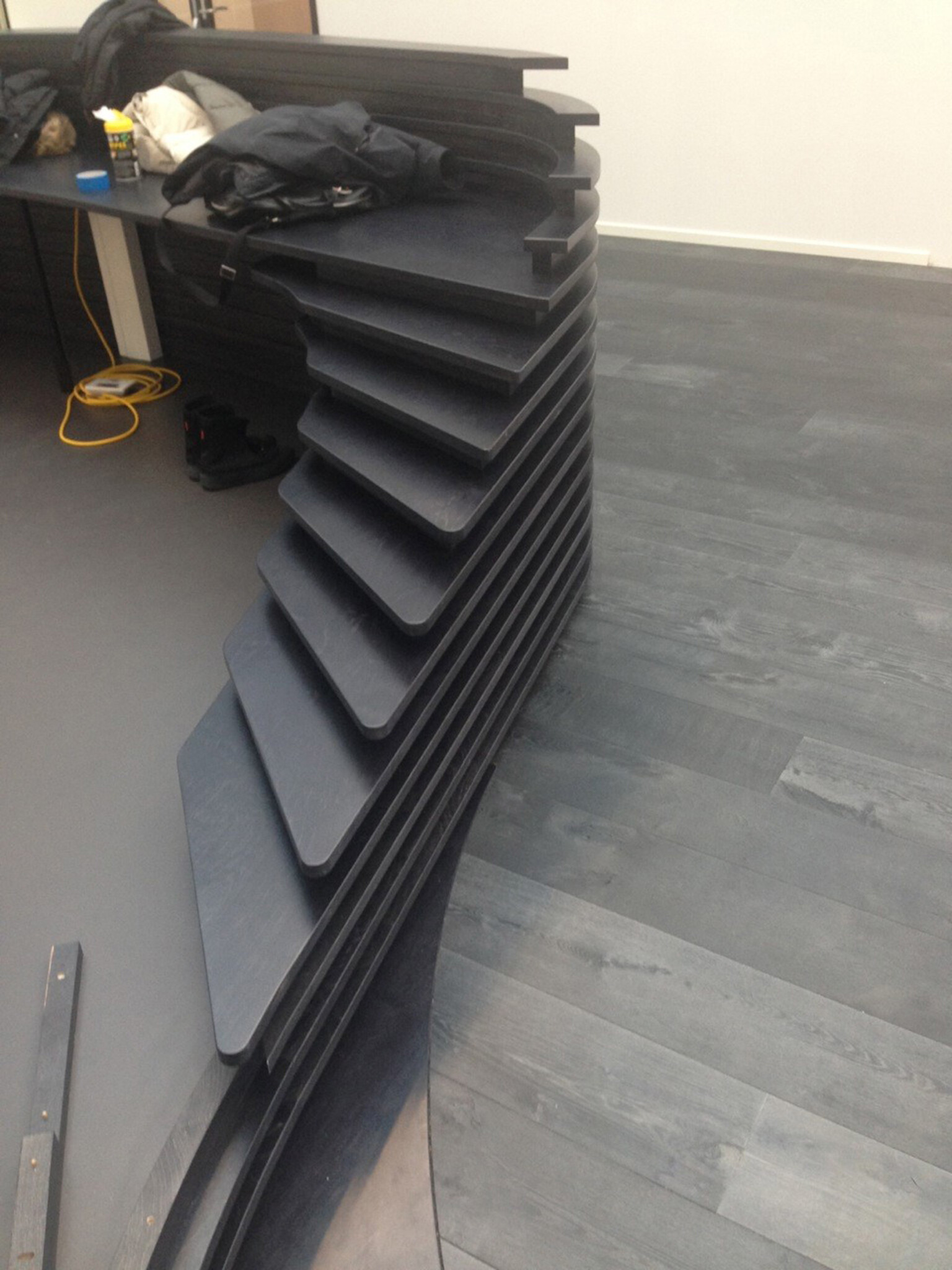

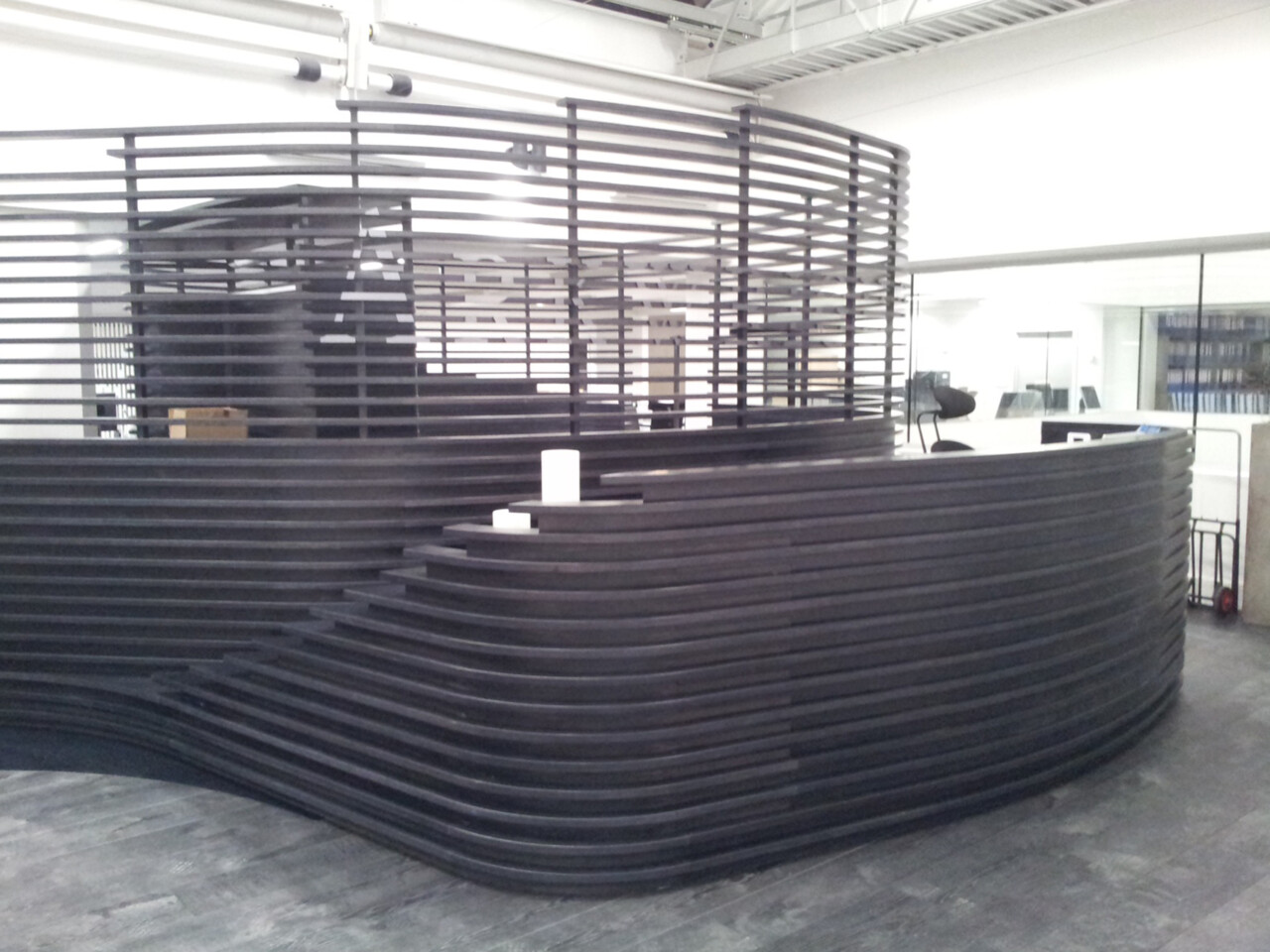

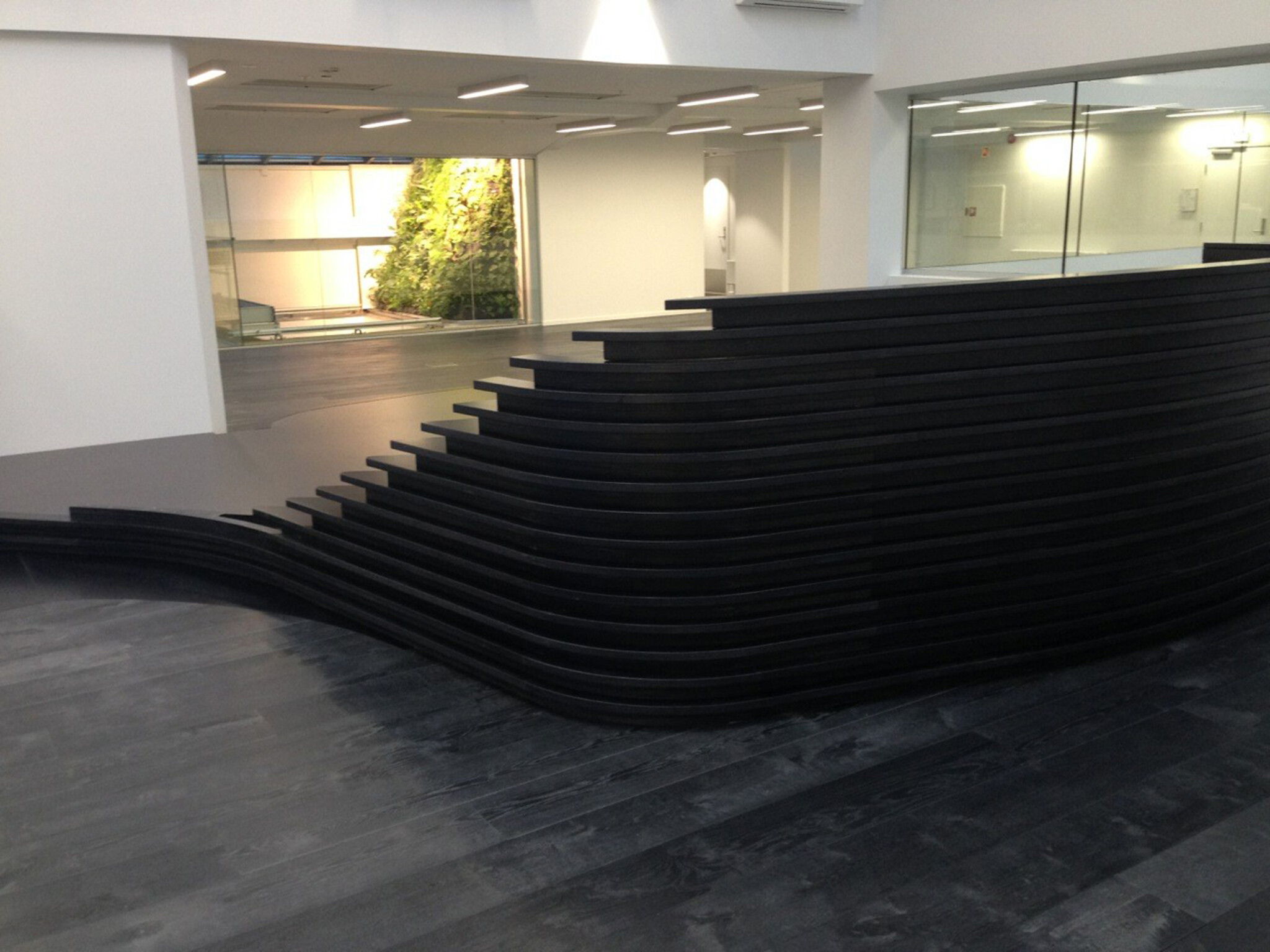

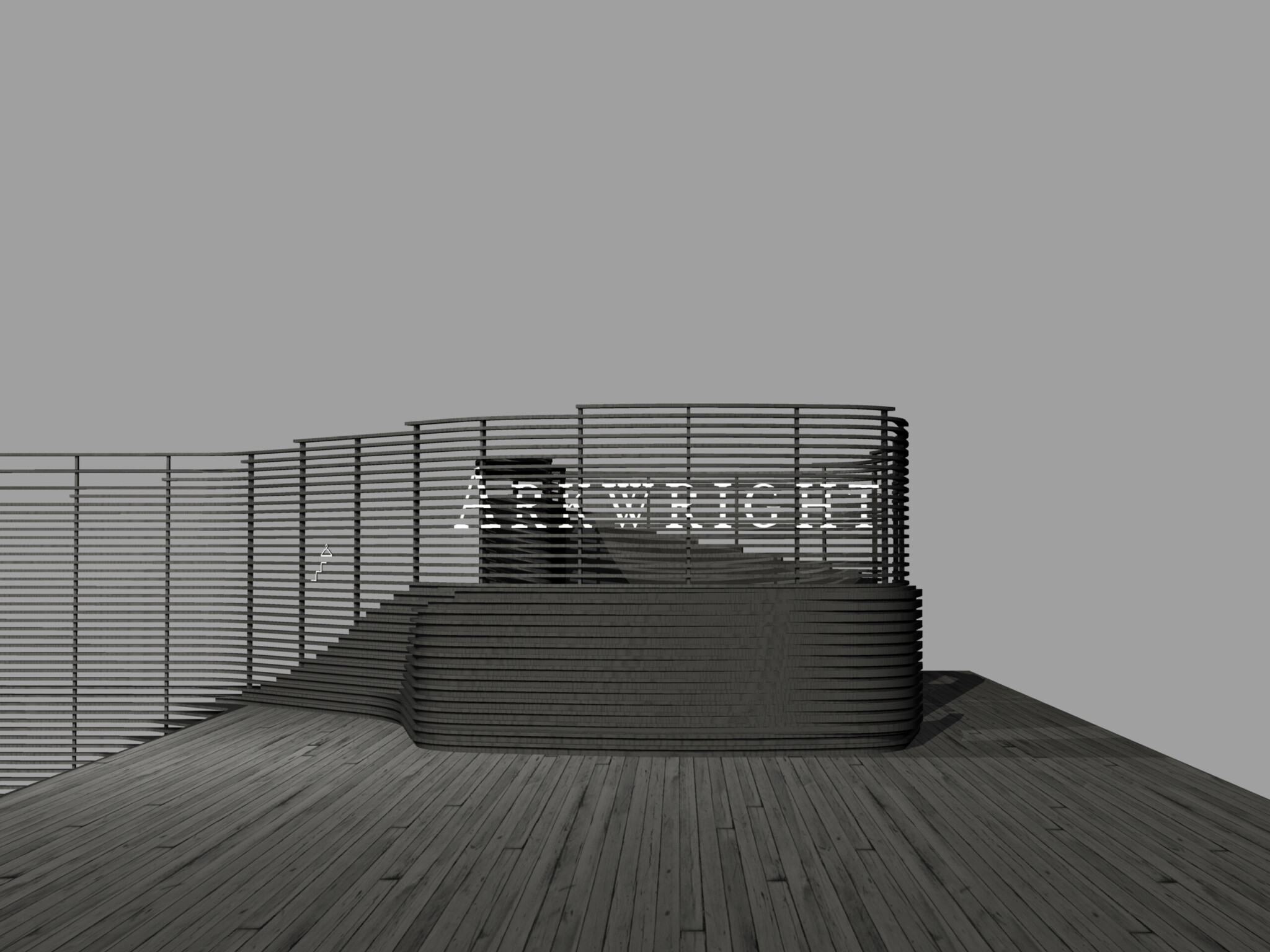

The timber slats change in width and arrangement according to their function, starting as a transparent vertical sunscreen around the reception desk, which is itself made of the same material.
![](https://hapticarchitects.com/wp-content/uploads/2022/03/Hapticarch_Arkwright_Model-scaled-930x698.jpg)
![](https://hapticarchitects.com/wp-content/uploads/2022/03/Hapticarch_Arkwright_Model-detail-scaled-930x698.jpg)
![](https://hapticarchitects.com/wp-content/uploads/2022/01/Hapticarch_Arkwright_wooden-stairs-section-detail-scaled-930x698.jpg)

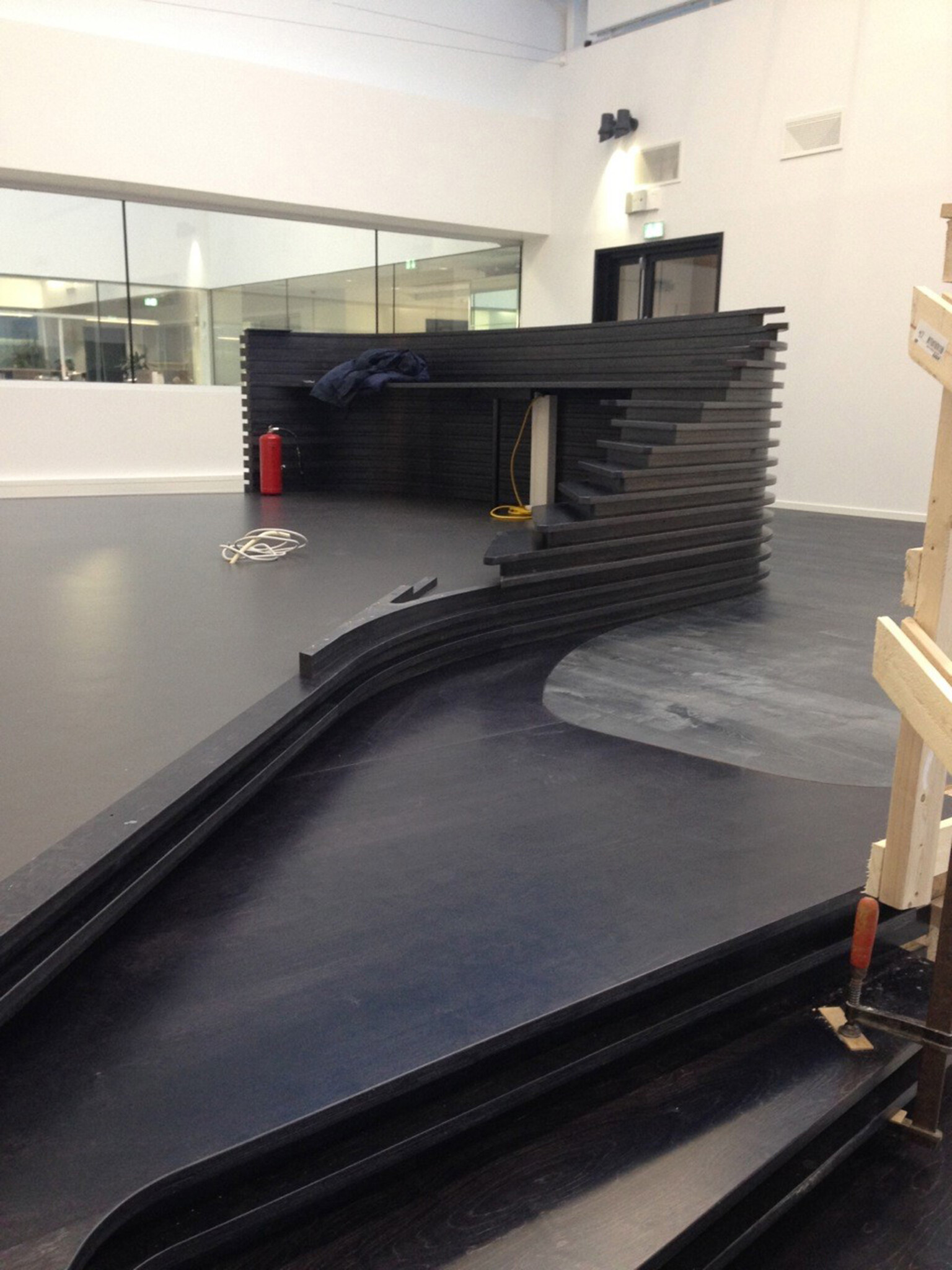

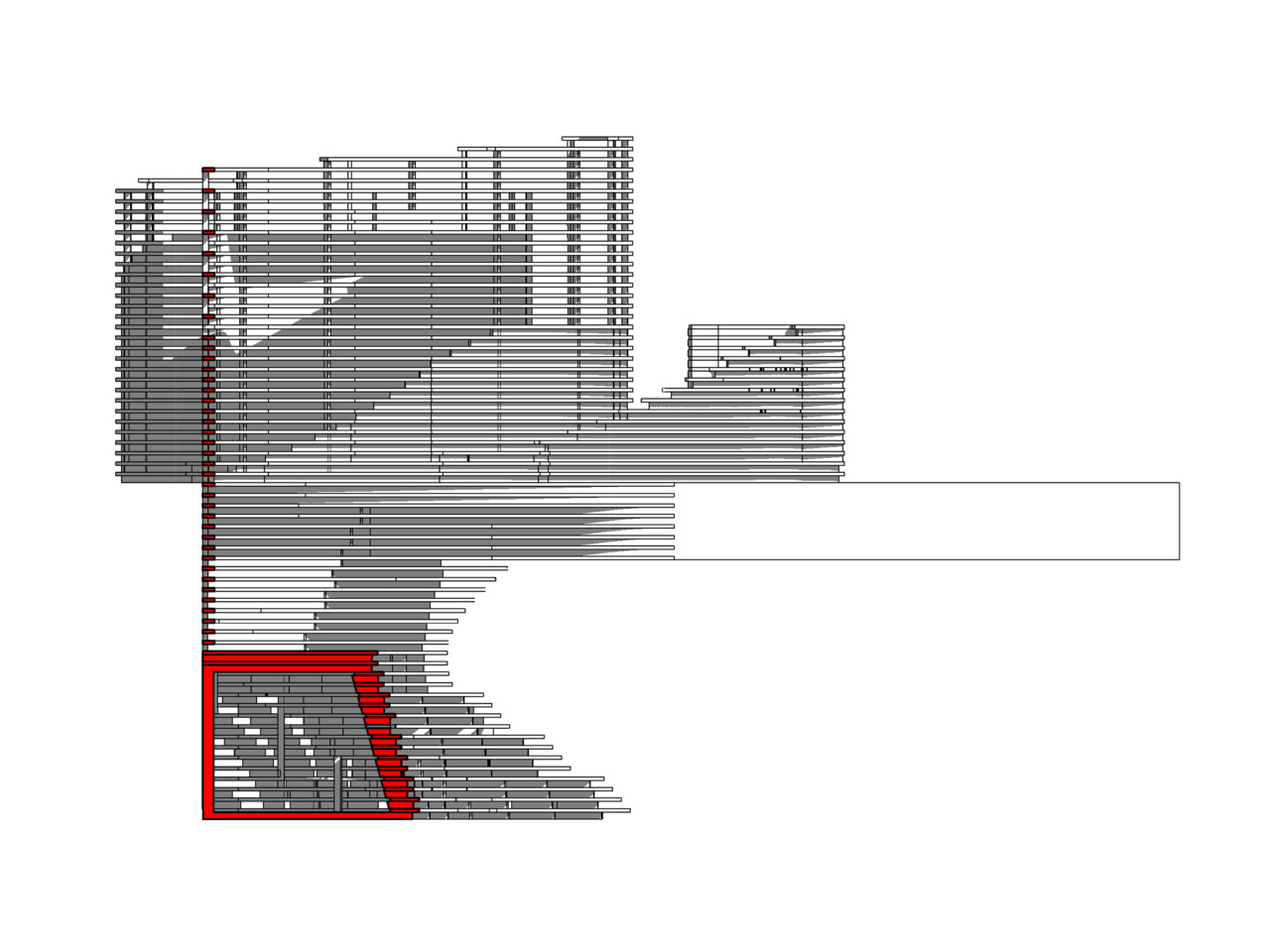

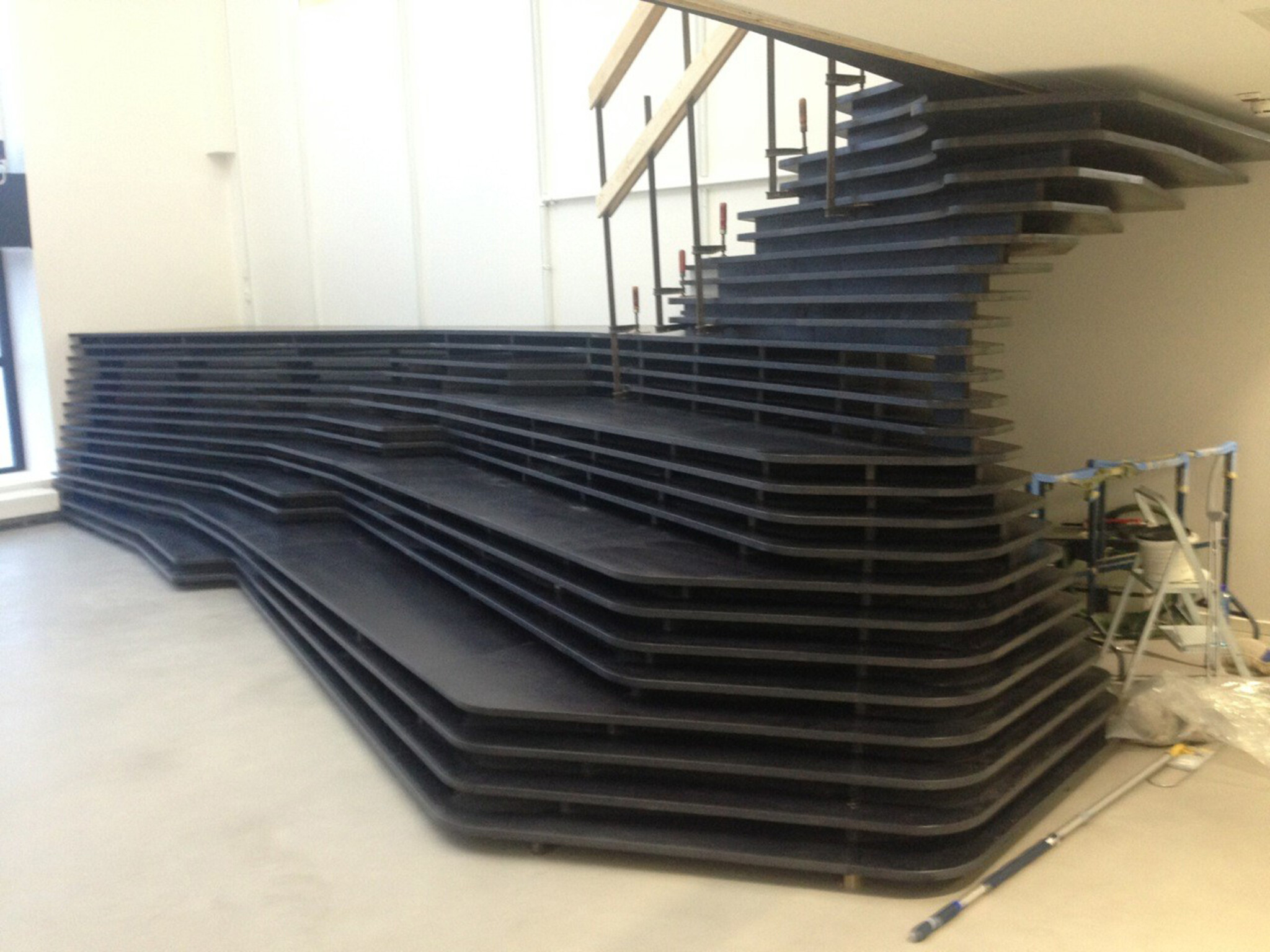

Stacked, they then form a steep-sided stair into the main space, where they broaden out to a shallower gradient, creating an informal amphitheatre of seats and a raised speaker’s position.
![](https://hapticarchitects.com/wp-content/uploads/2022/01/Hapticarch_Arkwright_wooden-slats-catalogue--scaled-930x698.jpg)

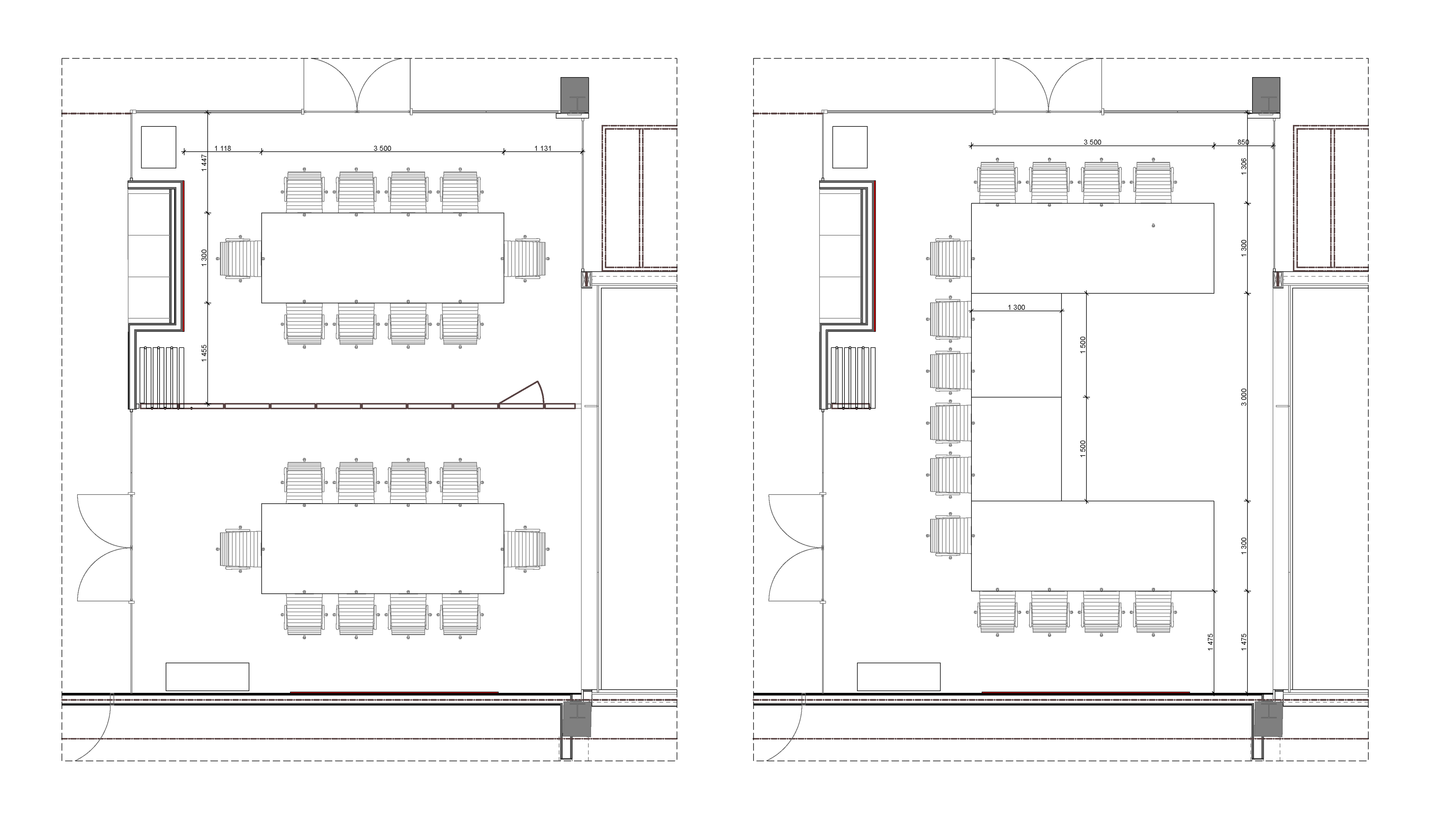

The main office and meeting rooms have a more conventional fitout in contrast to the amphitheatre space and the Bond-style meeting room, which is reached through a revolving bookcase.

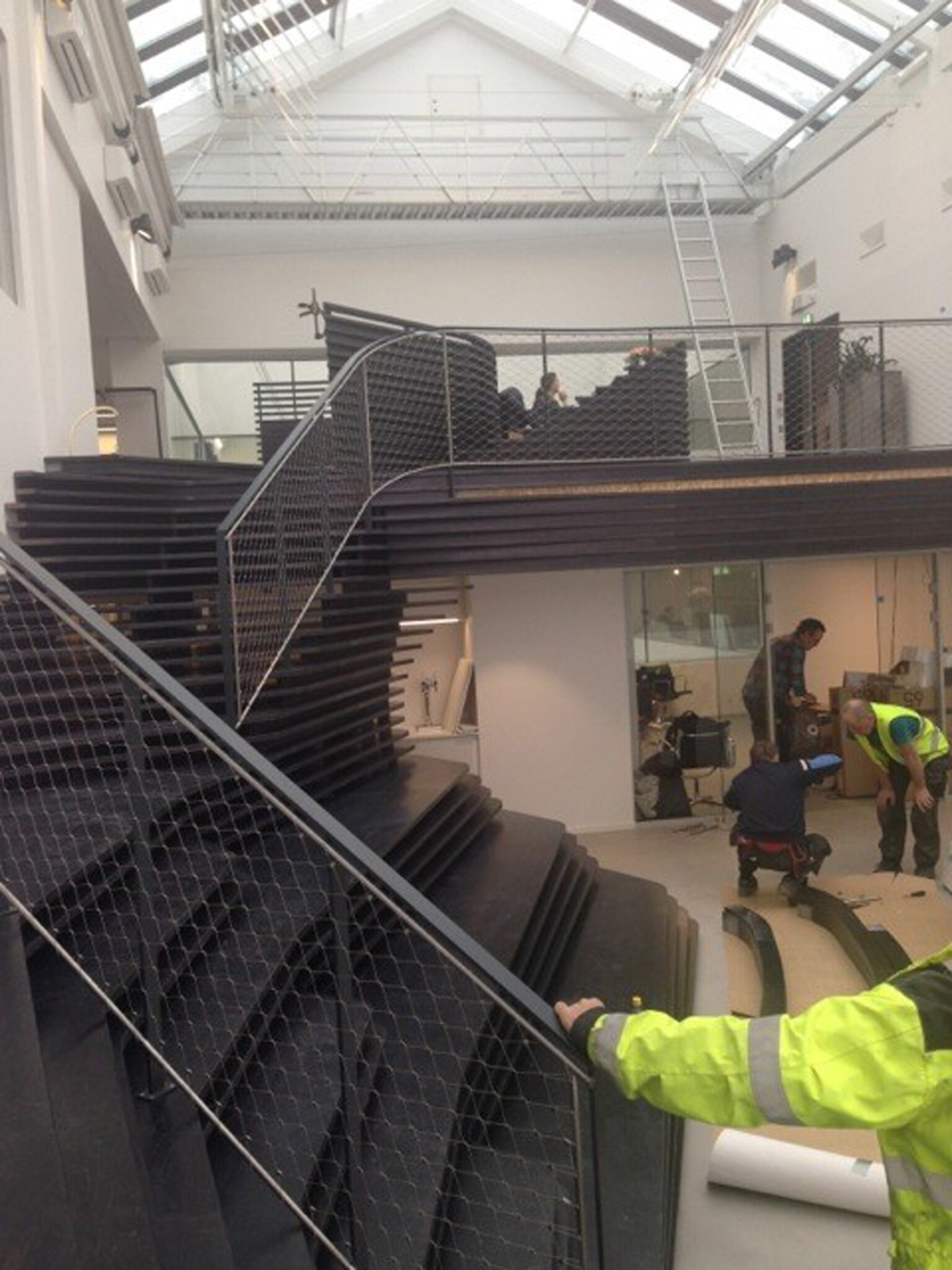

![](https://hapticarchitects.com/wp-content/uploads/2022/01/Hapticarch_Arkwright_On-site-stairs-construction-930x1240.jpg)
![](https://hapticarchitects.com/wp-content/uploads/2022/01/Hapticarch_Arkwright_On-site-stairs-construction-5-930x698.jpg)

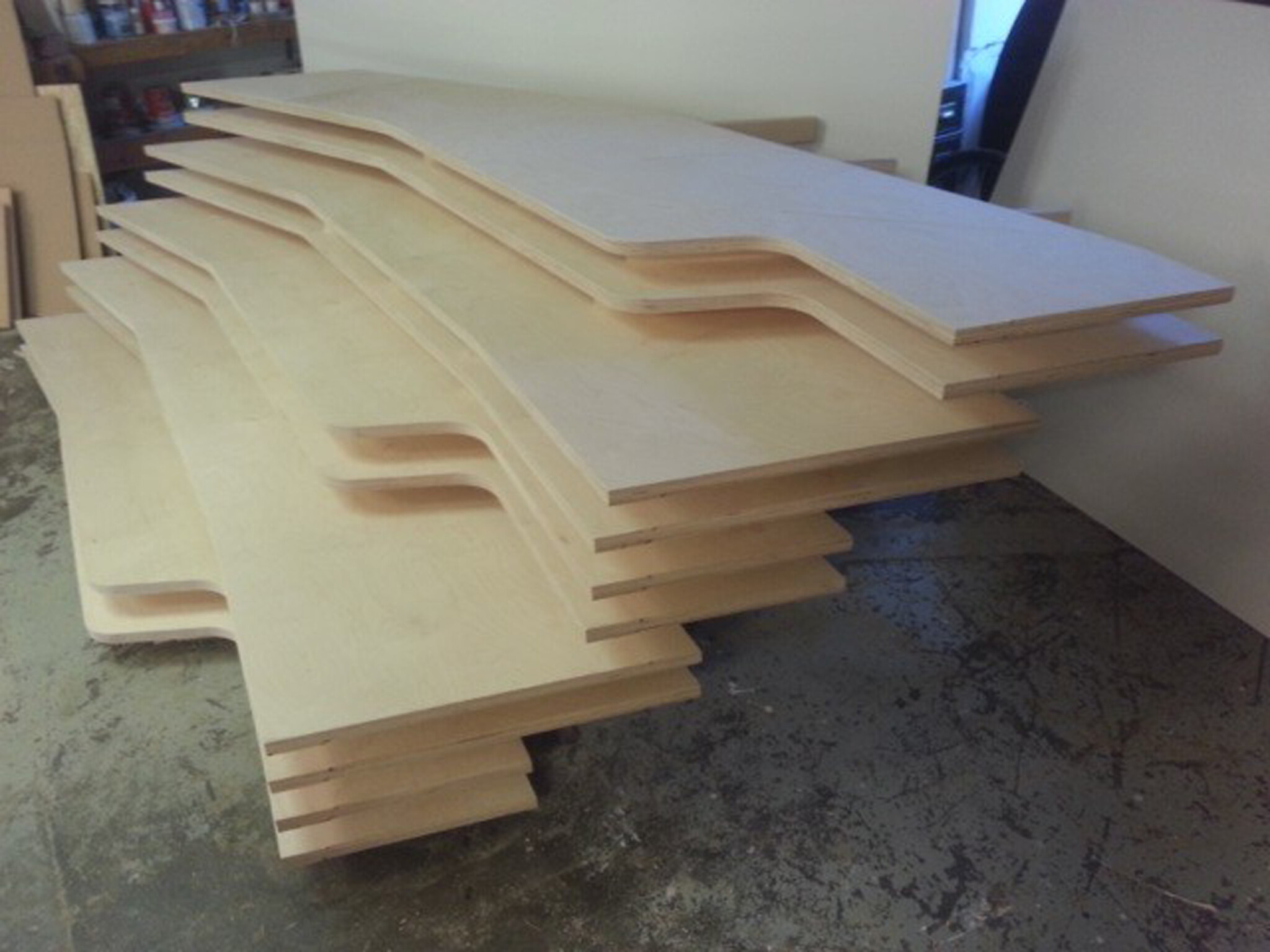

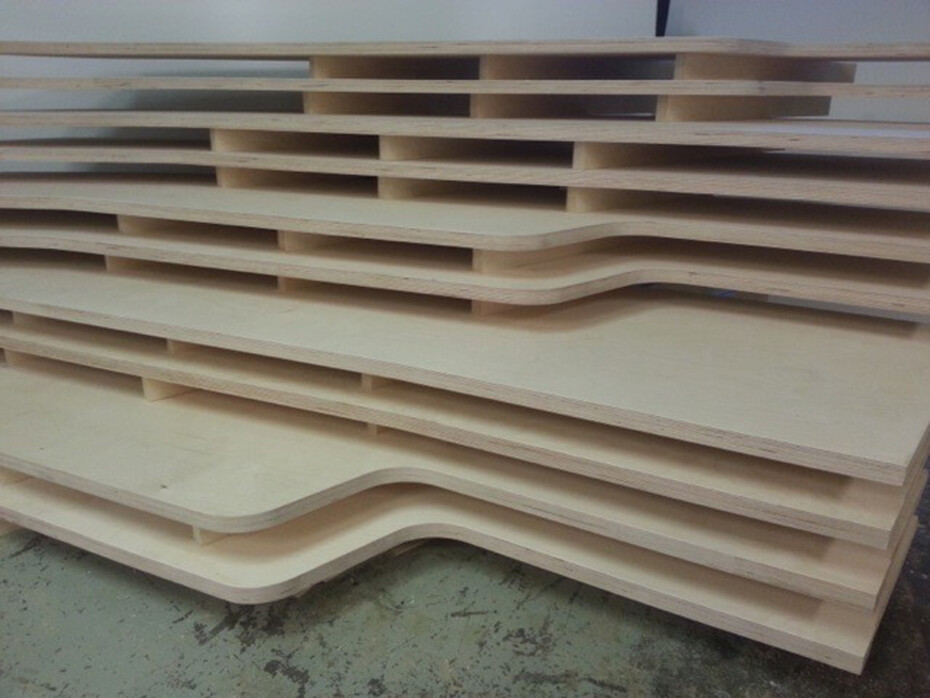

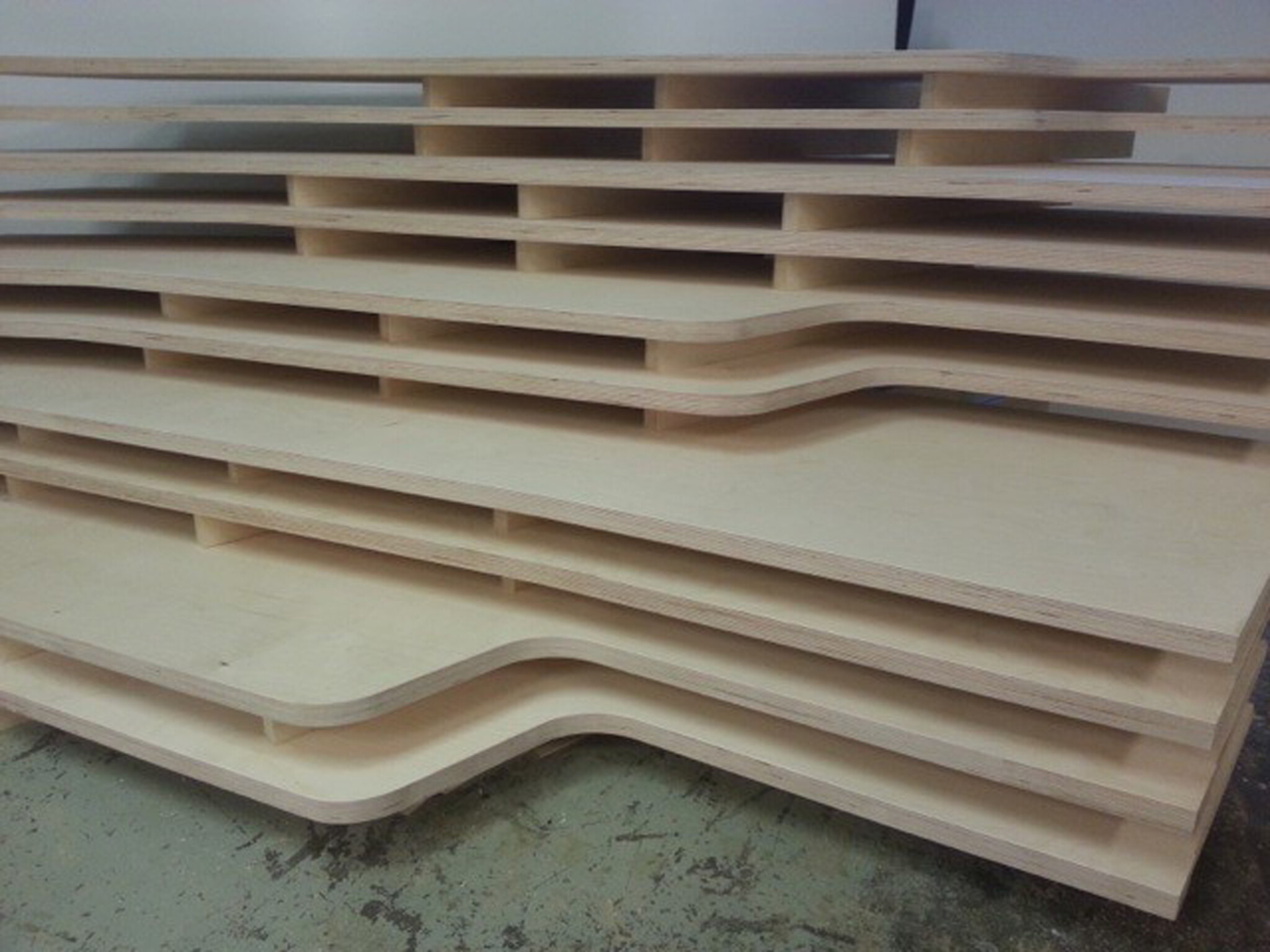

We collaborated on the scheme with specialist cabinet maker Treververk Stedet, who successfully translated the very complex shapes we had designed into wood.
![](https://hapticarchitects.com/wp-content/uploads/2022/01/Hapticarch_Arkwright_Stairs-construction-testing-930x698.jpg)
![](https://hapticarchitects.com/wp-content/uploads/2022/01/Hapticarch_Arkwright_Stairs-construction-testing-2-930x698.jpg)
To achieve these shapes we invented a whole new ‘squircular’ geometry, a combination of both squares and circles.
![](https://hapticarchitects.com/wp-content/uploads/2022/01/Hapticarch_Arkwright_On-site-stairs-construction-4-930x1240.jpg)
![](https://hapticarchitects.com/wp-content/uploads/2022/01/Hapticarch_Arkwright_On-site-front-desk-construction-3-930x1240.jpg)
![](https://hapticarchitects.com/wp-content/uploads/2022/01/Hapticarch_Arkwright_On-site-front-desk-construction-2-930x698.jpg)
Collaborators BOB Design created large-scale graphics based on transcripts of speeches by exceptional people with exceptional ideas. These visual compositions were transferred to vinyl on the glass doors and partitions throughout.
![](https://hapticarchitects.com/wp-content/uploads/2022/01/Hapticarch_Arkwright_On-site-stairs-construction-6-930x698.jpg)
![](https://hapticarchitects.com/wp-content/uploads/2022/01/Hapticarch_Arkwright_On-site-front-desk-construction-4-930x697.jpg)
We have continued to work with our client at Arkwright, designing his private home and drawing up sketches for his holiday chalet, effectively becoming a house architect and friend.
![](https://hapticarchitects.com/wp-content/uploads/2022/01/Hapticarch_Arkwright_Close-up-steps-from-above-with-coffee-scaled-930x1240.jpg)
The project is typical of many of our interiors in its extensive use of timber, and the close relationships we foster with both clients and craftspeople.
